As the smart card industry moves toward greener and more sustainable manufacturing, RPVC card materials are becoming an important innovation in secure card production. Ketian's RPVC Coated Overlay is designed to combine environmental responsibility with high-performance lamination reliability for modern smart card applications.

What Is Ketian RPVC Coated Overlay?

Ketian RPVC Coated Overlay is produced from post-consumer recycled PVC materials. The recycled PVC undergoes a strict refinement process including:

Sorting and classification before reuse

Cleaning and impurity separation

Drying and crushing

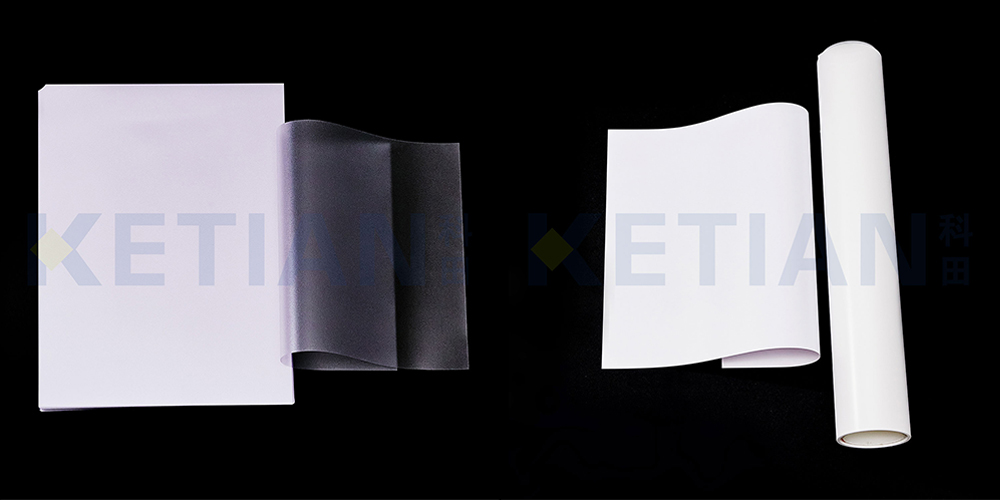

The processed material is then converted into RPVC base film, followed by coating a specialized hot-melt adhesive layer on the surface. The final product is an eco-friendly laminated film designed for smart card manufacturing.

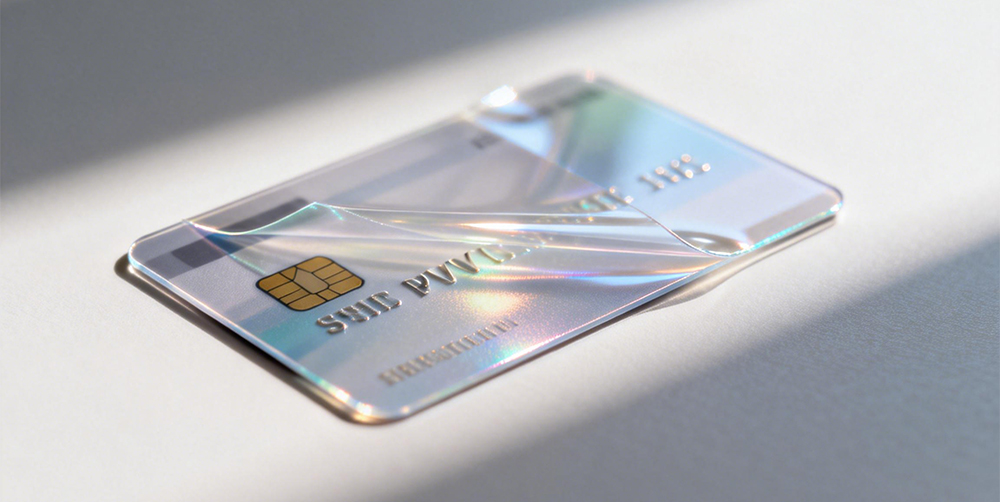

This sustainable material is widely used in both contact and contactless smart card applications, including:

Banking cards

Transportation cards

Access control cards

Membership and loyalty cards

Why Smart Card Manufacturers Choose RPVC Card Material

As a professional smart card base material manufacturer, Ketian's RPVC Coated Overlay offers excellent lamination compatibility and dimensional stability, making it a reliable choice for global card producers seeking both performance and sustainability.

Key Features of Ketian RPVC Coated Overlay

High Temperature Resistance

The material withstands lamination temperatures of 130°C to 170°C. The adhesive layer remains stable without aging or degradation, ensuring consistent card production quality.

Excellent Impact Resistance

Thanks to the strong RPVC substrate, the material offers superior durability, scratch resistance, and impact protection during daily card usage.

Reliable Bonding Strength

The specialized adhesive layer provides strong adhesion to PVC substrates with high peel strength, preventing delamination over long-term use.

Eco-Friendly and Compliant

Manufactured with environmentally responsible formulations, Ketian RPVC film complies with RoHS, REACH, and GRS standards, supporting sustainable smart card production.



 Flexible Processing Compatibility

Available in multiple thickness options, the film is compatible with cutting, printing, and lamination processes, making it ideal for high-end personalized smart card manufacturing.

Technical Specifications of RPVC Coated Overlay

Item	Specification
Thickness	0.04mm～0.1mm
Color	Transparent
Vicat Softening Point (B50)	72°C – 78°C
Peel Strength	≥ 6 N/cm
Delivery Form	Sheets / Rolls
Type	Uncoated / Coated / Strong Coated
Certifications	RoHS, REACH, GRS Compliant

Applications of RPVC Smart Card Material

Ketian RPVC Coated Overlay is widely used in RPVC plastic smart cards, including:

High-End Financial Cards

Credit cards

Chip debit cards

Custom gift cards

Premium Commercial Cards

VIP retail membership cards

Service industry privilege cards

Branded loyalty cards

Durable Transportation & Access Cards

Wear-resistant metro cards

Composite bus cards

Access control cards with protective adhesive layers

Storage Guidelines

1、Store the product in a cool, dry indoor environment, stacked horizontally. Avoid direct sunlight and heavy pressure. Keep original packaging sealed to prevent moisture exposure.

Recommended storage temperature: Room temperature.

2、Under proper storage conditions, the shelf life is one year (subject to manufacturer guidelines).

3、Follow a first-in, first-out usage principle. Reseal unused materials promptly and use opened products as soon as possible.

Your Ideal Partner for Sustainable Smart Card Materials

With deep technical expertise and an annual production capacity of 15,000 tons, Ketian delivers large-volume, high-quality customized smart card base material solutions. We are ready to provide tailored RPVC, PVC, and advanced eco-friendly card material solutions that meet your technical and design requirements.

Contact us today: info@ketian.net.cn

Request free samples and receive a detailed quotation for your project.
